How to create a Custom Master Checkpoint Test?

How to create a Custom Master Checkpoint Test?


By following these steps you will be able to create your own Master CP test

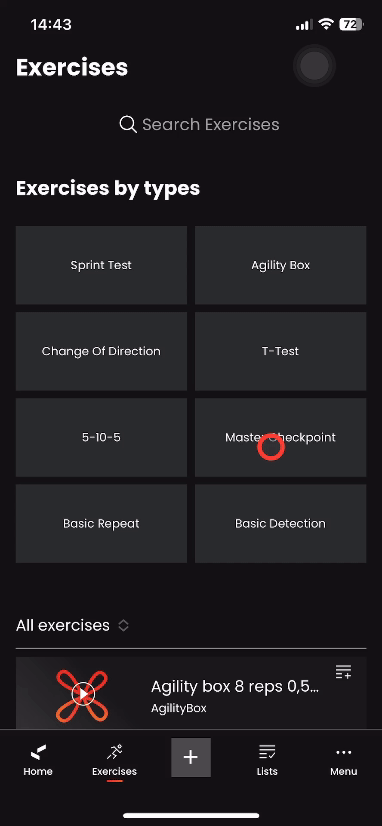

1. Open the Master Checkpoint menu variables

  1. Tap on the name of the Master Checkpoint test
  2. Tap on "Create a custom exercise"
  3. Tap on "Variables" to open the Master Checkpoint variables menu

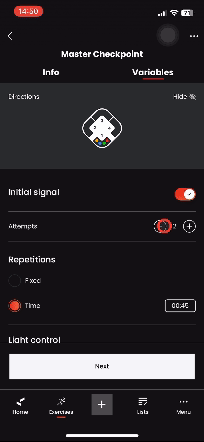

2. Select the variables to create your own Custom Master Checkpoint test

  1. Initial signal: if the Ledsreact Pro need to provide a first color on which the player need to react
  2. Attempts: the amount of tests each selected player must run
  3. Repetitions: choose between Fixed (amount of signals) or time (total duration of the test) which is great for interval training
  4. Light control: select the colors the Ledsreact Pro need to provide during the test

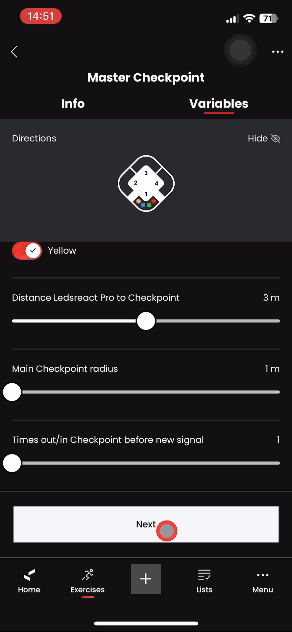

  5. Distance Ledsreact Pro to checkpoint: the distance measured from the Ledsreact Pro to the starting point
  6. Main checkpoint radius: the radius of the start/finish point in which the player need to stand to receive a next signal. How bigger how faster a new signal will be provided
  7. Times in and out before new signal: the amount of times the player must run out and in the checkpoint before he will receive a next signal


3. Give your Custom Master Checkpoint a name

  1. Tap Next
  2. Fill in the name you would like to provide to your Custom Master Checkpoint test
